Dedicated electrical supplies for three air-conditioning condensers — Harrogate
We provided safe, dedicated electrical supplies and local isolation for three external air-conditioning condenser units at a residential property in Harrogate. One of the condensers was located on the opposite side of the house, which required an adjusted cable route on site.
Project overview
Location: Harrogate
Service: Dedicated electrical supplies and local isolation for air-conditioning equipment
Property type: Home
The customer brief required dedicated supplies and local isolation for three external condenser units. The original information covered two units; on arrival we found a third condenser sited on the opposite side of the house.
Why the customer contacted us
The homeowner required dedicated circuits and local isolation for each condenser, unobtrusive cable routes and minimal disruption to finished rooms.
Work completed

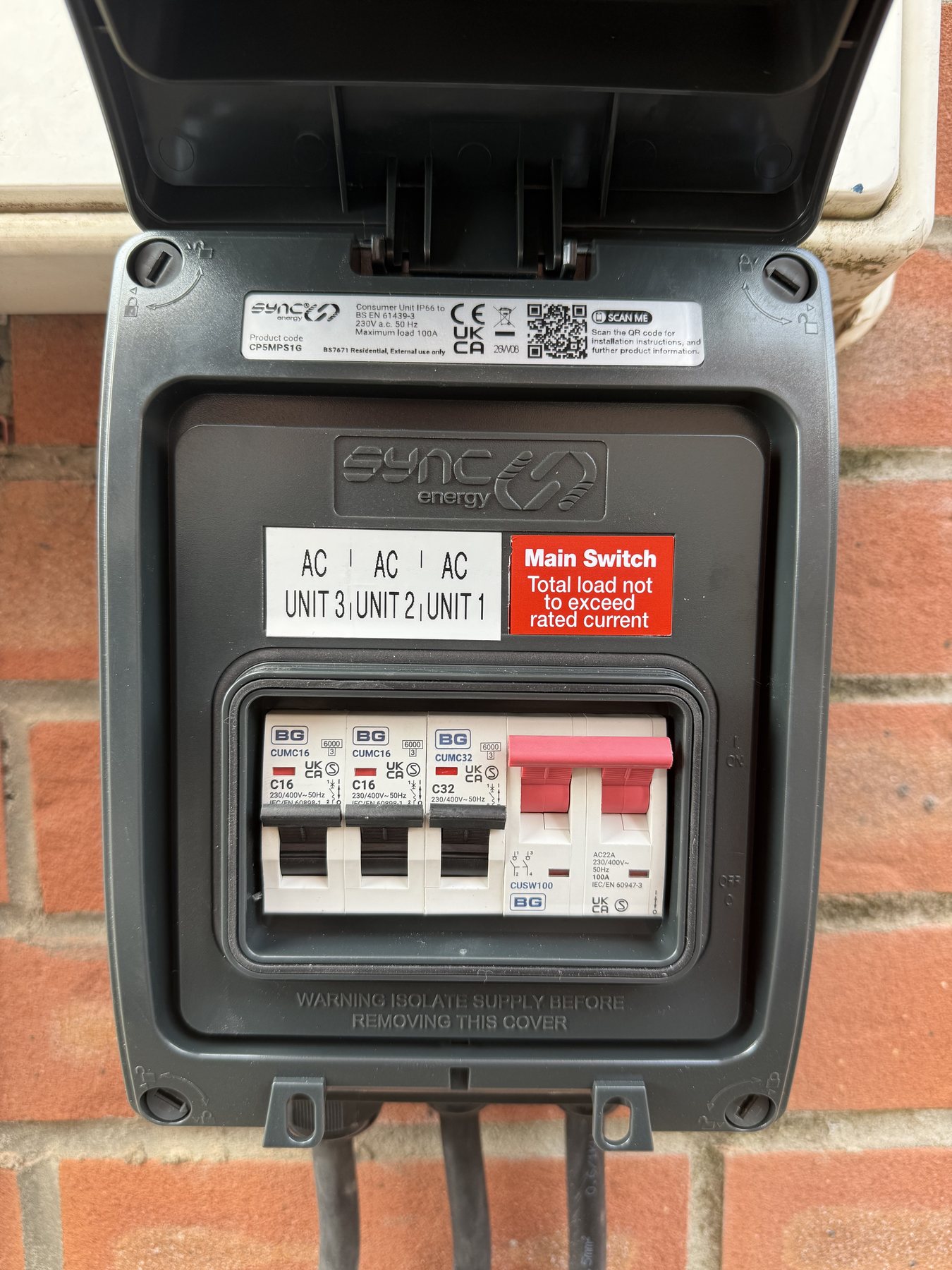

An IP‑rated external consumer unit was installed adjacent to the existing meter box and three dedicated supplies were provided, each with local isolation. To serve the third condenser on the opposite side of the house, the cable route was revised on site and routed via the loft to avoid an exposed run around the front of the property.
Products installed
- IP‑rated external consumer unit
- Three dedicated supplies for the external air‑conditioning condensers
- H07RN‑F external cable for the outdoor connections

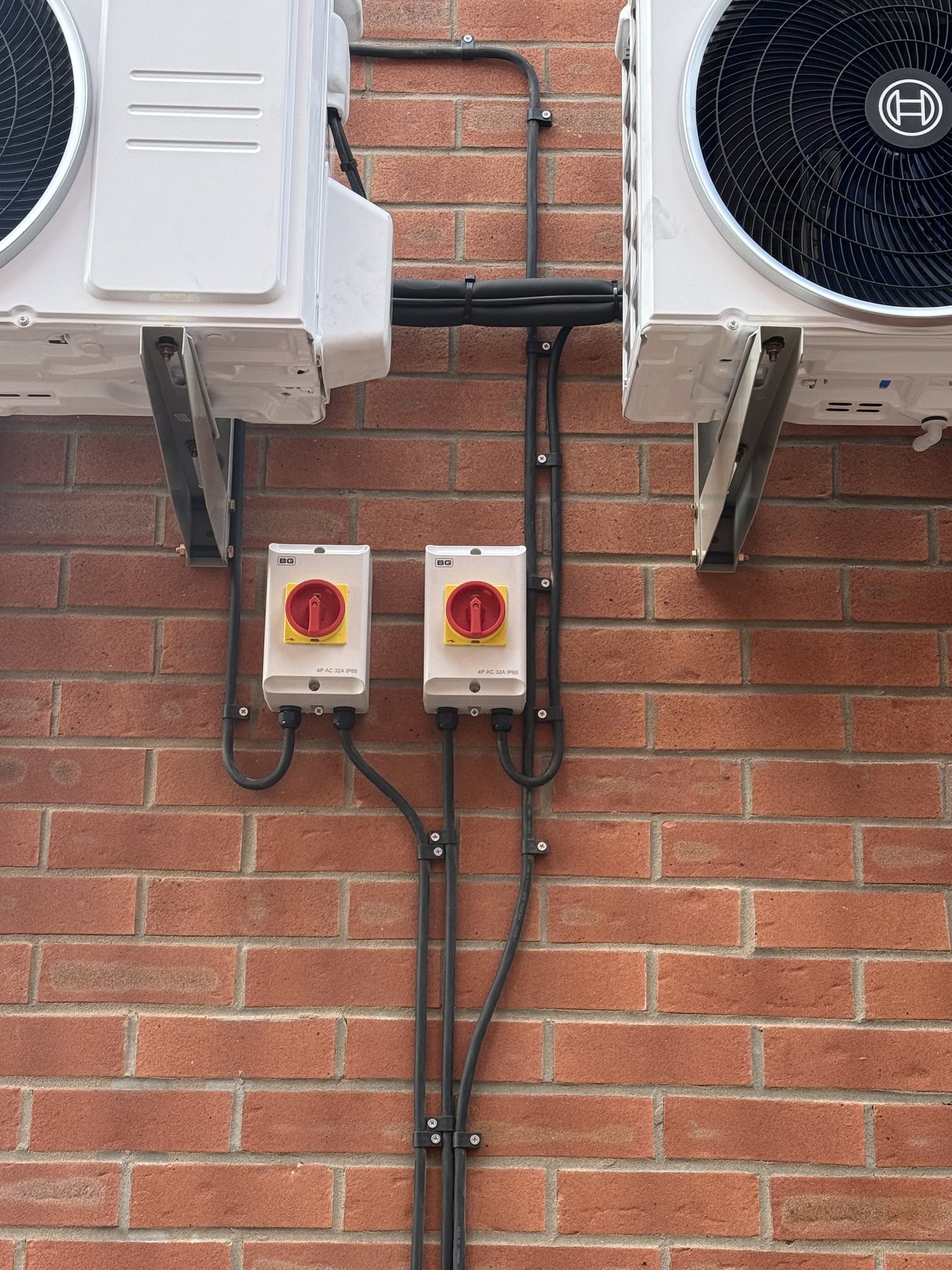

- IP‑rated rotary isolators mounted adjacent to the condensers
Testing and certification
The new supplies were tested and an electrical certificate was issued. All three condensers were left with clearly labelled dedicated supplies and local isolation.
Problems encountered

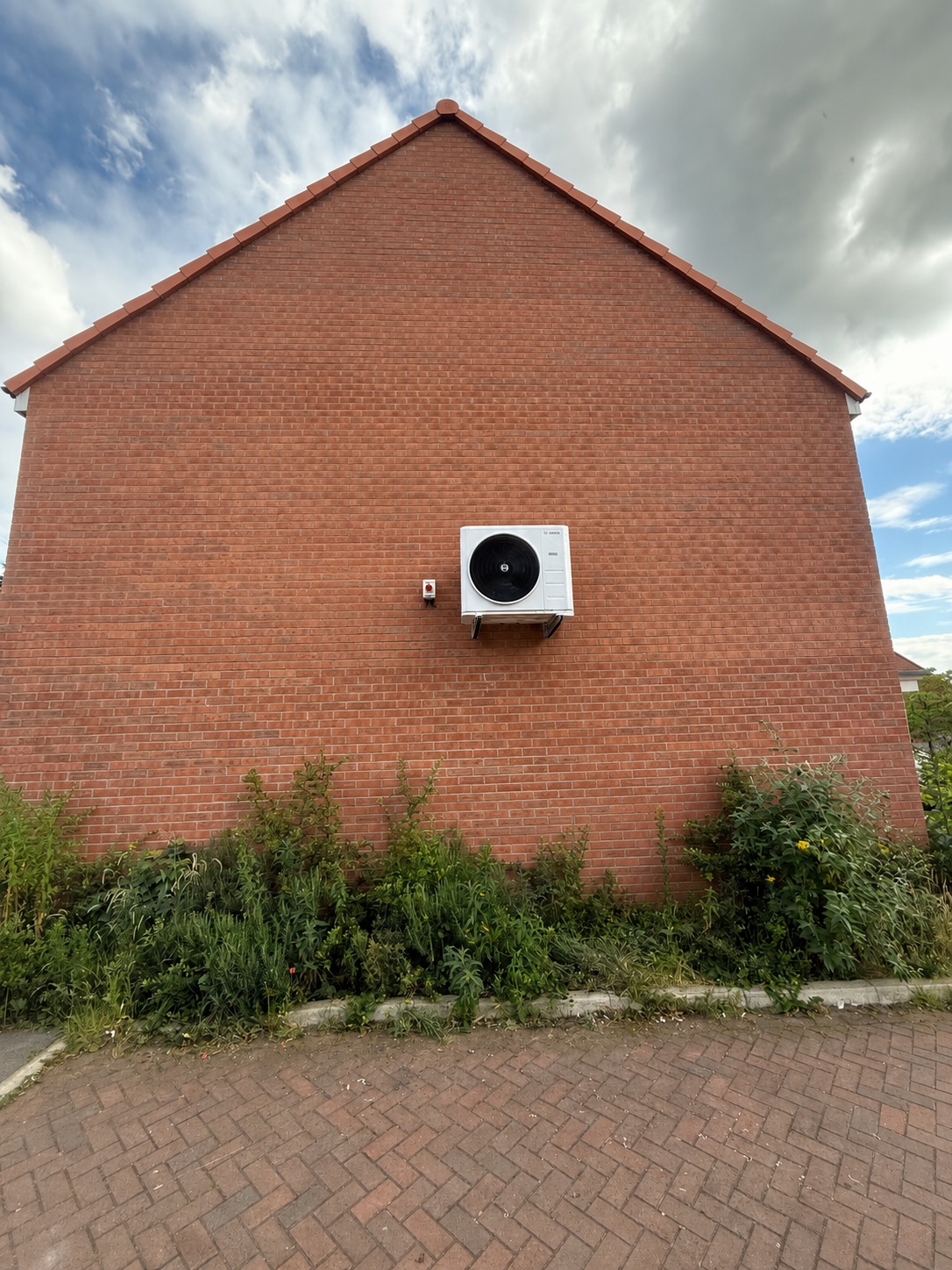

The third condenser was not included in the original brief and was located on the opposite side of the house. We adapted the installation on site and revised the cable route to maintain a discreet external appearance.
The result

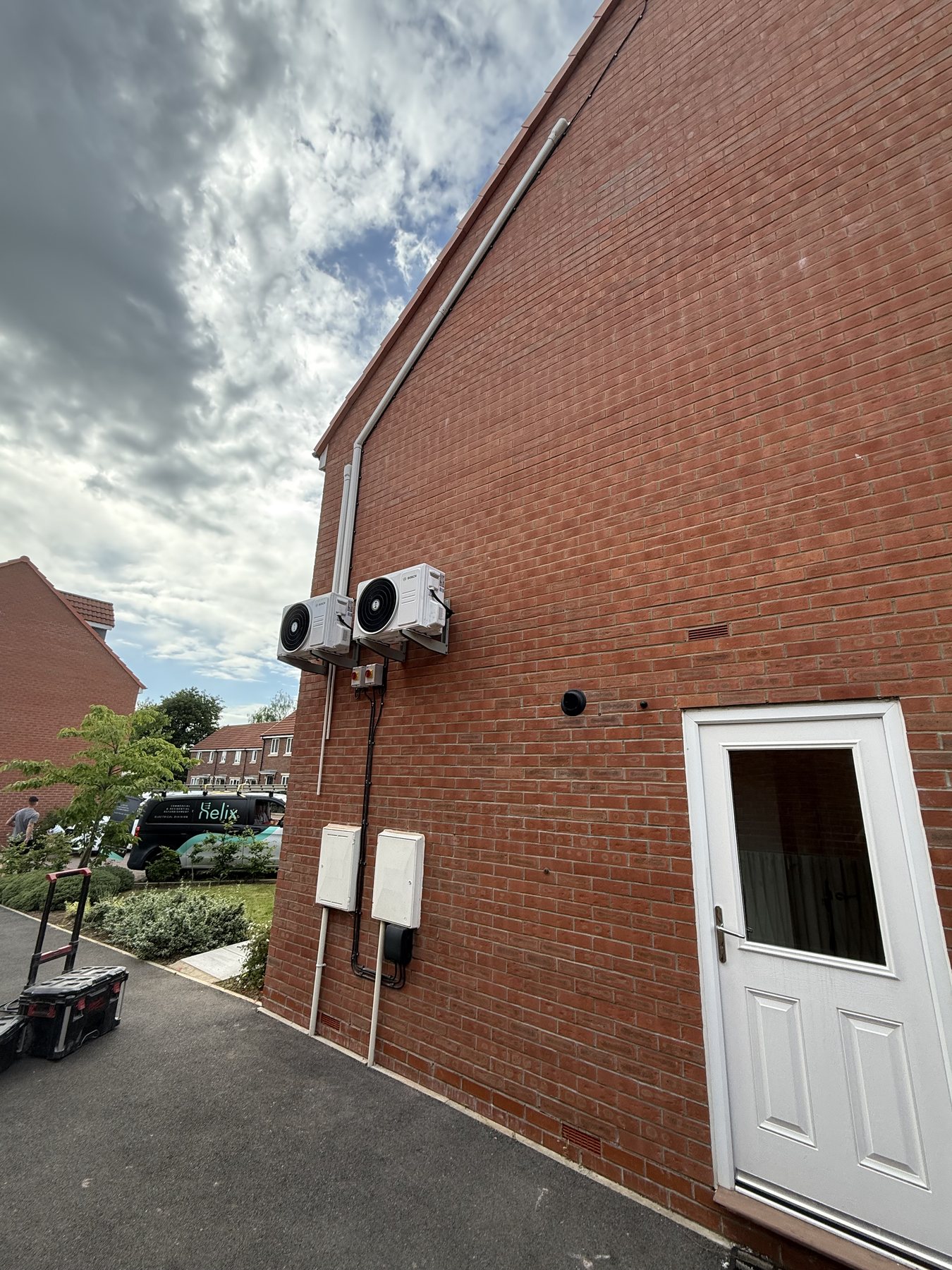

The homeowner received a tidy, discreet external installation with three dedicated supplies and local isolation, achieved with minimal disruption to the property.
Project photographs
The approved photographs from this job are shown below.
